Description

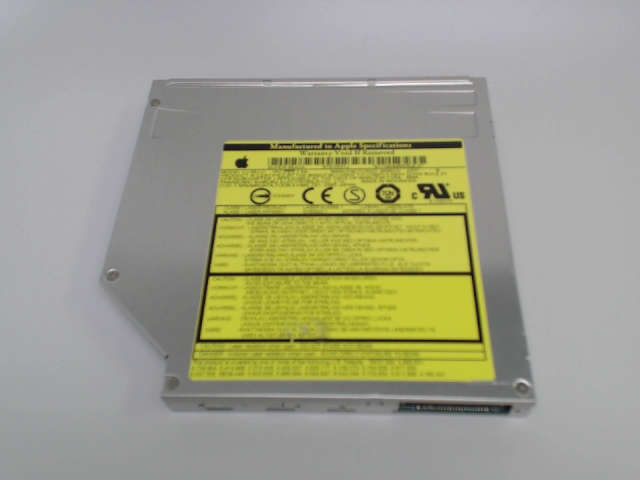

This is a replacement superdrive for the Intel iMac. (Picture is of Matshita drive, drive will be the brand you select. Make sure to by the same brand as what was already installed in your device.)

Note that this drive uses an ATA Bus and NOT a SATA bus. You need to check your bus type before placing an order to verify you order the correct drive as iMacs used both SATA and PATA versions of the optical drives. You can check which type bus your model has by going to System Profiler or System Report in About This Mac menu.

Supported Media: DVD: DVD-R, DVD-RW, DVD+R, DVD+RW, DVD+R DL CD: CD-R, Multi-Speed CD-RW, High-Speed CD-RW, Ultra-Speed CD-R. Read Support: DVD: DVD-ROM, DVD-VIDEO, DVD-R, DVD-RW, DVD+R, DVD+RW & DVD+R DL. CD: CD-ROM(Mode 1&2), CD-ROM XA, CD-DA, Video CD, PhotoCD, CD EXTRA, CD-Text, CD-R, CD-RW. Write Speed: DVD-R: 8X DVD-RW: 4X DVD+R: 8X DVD+RW:4X DVD+R DL*2: 2.4X CD-R: 24X CD-RW: 16X Read Speed: DVD: Max 8x CAV CD-ROM: Max 24x CAV Data Buffer (size): 2 MBytes
Apple Part #:
661-4025, 661-4091, 661-4028, 661-4385, 661-4391, 661-4637, 661-4716
Manufacturer Part #:
UJ-845, UJ-846, UJ-85J, UJ-875, DVR-K06PA, DVR-K06PB, DVR-K06PC, DVR-K06PD, DVR-K06RS, AD-5630A
EEE Codes:
661-4025:   UM6, V6S, X6N
661-4091:   2U2, 42K, F84, WFQ, X2M, XC2
661-4028:   Y77
661-4385:   BX9, XE6, XHG, XSH, XWL
661-4637:   074, 07A
Brand:
PowerbookMedic
Compatible With:
See Compatibility List
Suggested Items for Installation:
Mac Repair Tool Set
Condition:
Used
Used parts are in Grade A- to A condition unless otherwise specified.
Warranty:
1 Year PowerbookMedic Warranty
Repair Guides:
Click to go to our Free Instructional Guides page.

Product Compatibility

Submit your device's serial number or model number to check for compatibility using our built-in system. These devices will be saved for future visits as well.

Still need help?


Give us a call at 1-866-726-3342 or use our live support.
*This item has multiple product options. The list below includes all of those options. Make sure you select the correct product option for your model.


Models Model Numbers Options
MacBook 13.3" 1.83GHz Core 2 Duo (A1181) - Late 2006 MA699LL/A
MacBook 13.3" 2.0GHz Core 2 Duo (A1181) - Late 2006 MA700LL/A
MA701LL/A
iMac 17" 2.0GHz Core 2 Duo (A1208) - Late 2006 MA590LL
iMac 17" 2.16GHz Core 2 Duo (A1208) - Late 2006 MA590LL
iMac 20" 2.0GHz Core 2 Duo (A1224) - Mid 2007 MA876LL
iMac 20" 2.16GHz Core 2 Duo (A1207) - Late 2006 MA589LL
iMac 20" 2.4GHz Core 2 Duo (A1224) - Early 2008 MB323LL/A
iMac 20" 2.4GHz Core 2 Duo (A1224) - Mid 2007 MA877LL
iMac 20" 2.66GHz Core 2 Duo (A1224) - Early 2008 MB324LL/A
iMac 24" 2.4GHz Core 2 Duo (A1225) - Mid 2007 MA878LL
iMac 24" 2.8GHz Core 2 Duo (A1225) - Early 2008 MB325LL/A
iMac 24" 2.8GHz Core 2 Extreme (A1225) - Mid 2007
iMac 24" 3.06GHz Core 2 Duo (A1225) - Early 2008 MB398LL/A

Self-Install Guides and Videos


We have a large selection of free take apart and installation guides on our repair guide page:
Mac Repair Guides .

Need this product Installed?


Click Here to visit our send-in Mac Service center, or call us at 1-866-726-3342, and ask us to do it for you!

We can install any item on our site for less than anyone else, guaranteed! We'll even ship you a box to send your unit in.



Price:   $15.75 - $49.95


Choose one of the options below..
Product Options
Brand:
