Description

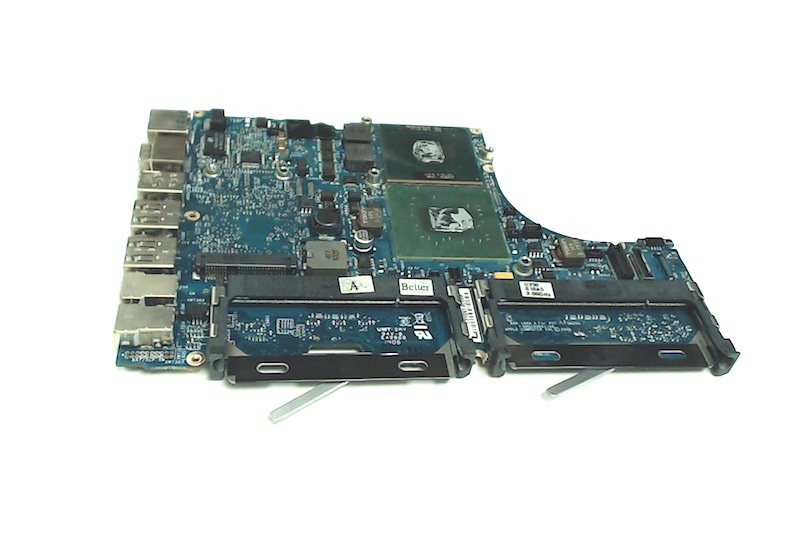

This is a MacBook 13" 2.0GHZ Core Duo logic board replacement. This is a pull from a working unit and comes with our standard 1 year warranty. This will work in both the black and white MacBook 13" units.

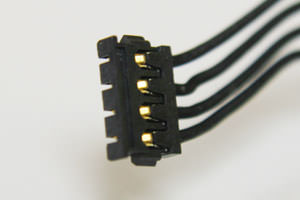

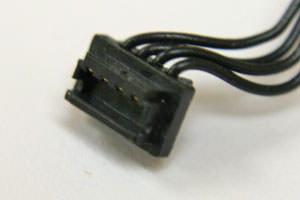

There are two different revisions of this board. The physical difference is the earlier 661-4219 and 661-4220 model uses all 4-wall socket type connectors, while the 6613964, 661-3983 and 661-4219-R use both 4-wall and 3-wall type connectors. You can see images of the two types of connectors in the detailed images. You can also check the serial number on your logic board and use the last three characters to match what you need to the EEE codes listed above.

Have a dead board that you need repaired? Try our Logic Board repair program! If we can't fix it, you don't pay!

Apple Part #:
661-3964, 661-3983, 661-4219-R, 661-4219, 661-4220
Manufacturer Part #:
820-1889, 820-1889-A
EEE Codes:
661-3964:   TYU, VZ1
661-3983:   VMC, VZ2
661-4219-R:   WSV, XOV, XOY
661-4219:   WXR, WXV, X0V, X0Y
661-4220:   WXT, WXU, X0X, X0Z
Compatible With:
See Compatibility List
Suggested Items for Installation:
Mac Repair Tool Set
Condition:
Refurbished
Warranty:
1 Year PowerbookMedic Warranty
Repair Guides:
Click to go to our Free Instructional Guides page.

Product Compatibility

Submit your device's serial number or model number to check for compatibility using our built-in system. These devices will be saved for future visits as well.

Still need help?


Give us a call at 1-866-726-3342 or use our live support.
*This item has multiple product options. The list below includes all of those options. Make sure you select the correct product option for your model.


Models Model Numbers SKU
MacBook 13.3" 2.0GHz Core Duo (A1181) - Mid 2006 MA472LL/A
MA255LL/A
GS1389
GS13893

Self-Install Guides and Videos


We have a large selection of free take apart and installation guides on our repair guide page:
Mac Repair Guides .

Need this product Installed?


Click Here to visit our send-in Mac Service center, or call us at 1-866-726-3342, and ask us to do it for you!

We can install any item on our site for less than anyone else, guaranteed! We'll even ship you a box to send your unit in.



Price:   $31.75 - $50.75


Choose one of the options below..
Product Options
Revision:
